Simplified I-Room for DICE Deployed in OpenSim-based MOSES Grid

A simplified design of I-Room has been moved from its original location on the VCE region in Second Life onto OpenVCE group space on the US Army run MOSES OpenSim grid.  It is available both in a location on the main OpenVCE_00 region just off the Central Plaza, and across from the original more complex I-Room, and for experimentation it is also on a radically simplified region OpenVCE_03 on MOSES.


Austin Tate's picture

DICE Meeting 1

Date: Day of Week, Month dd, 2012 - hh:mm GMT
Point of Contact: Austin Tate
DICE Experimental Meeting 1
Meeting Time: TBA
  • Jeff Hansberger (Jeff Reanimator)
  • Austin Tate (Ai Austin)
  • Chuck Kennedy (TBA)
  • Pat Gillich (TBA)
VW Platform Location URL Launcher
Second Life

OpenVCE 3D Space - I-Zone - Round table for up to 25 people





  1. Check setup of Second Life Viewers, text chat, Instant Messaging and Headsets for Voice
  2. Show short presentation
  3. Check video setup
  4. Plan next productive meeting

Getting Started

Austin Tate's picture

DICE Project Events

DICE Events and Meetings

admin's picture

DICE - Addressing Issues with Previous Experiments

This page is a list of technical problems identified during experimentation with OpenVCE, e.g. with the WoSCR community in 2009/2010. Where available, alternatives to address the issues are discussed.

  1. VoIP/Audio problems: A number of users had trouble with the audio capabilities. This was probably the most severe problem as it led to significant delays at the beginning of meetings and disruptions during the meetings. Spefifically, the following problems occured during the experiments:
    • Multiple I/O devices: When connecting a headset to a computer that has built-in speakers/microphone, Second Life must be configured to use the correct hardware. The corresponding option is not easy to find in the SL client. Also, SL sometimes does not recognize audio devices that are plugged in after the SL has been started. - This issue should be addressed by a tutorial introduction for new users, and it should be tested quickly before every meeting whether audio is working correctly.
    • Feedback loops: Users not using a headset, but having an open microphone often create an echo for other users when their microphone picks up the sound from their speakers and feeds it back to SL. - This problem does not occur with a headset. Otherwise the mute button should be used to break the feedback loop.
  2. Firewall problems: Second Life requies certain firewall wall ports to be open, which needs to be done well in advance to ensure access. - This issue must be addressed well in advance of the first meeting and usually requires system adminsitrators help. Usually this needs to be done only once.
  3. Viewpoint control: During the presentations it was difficult for users to view the screens showing slides (or video).
  4. Seek questionaire feedback from Jeff H.
  5. Blog about issues in adoption of virtual worlds for meetings (education) on 4-Oct-2011 at http://gridjumper.net/2011/10/04/real-barriers-to-virtual-world-use-in-education/

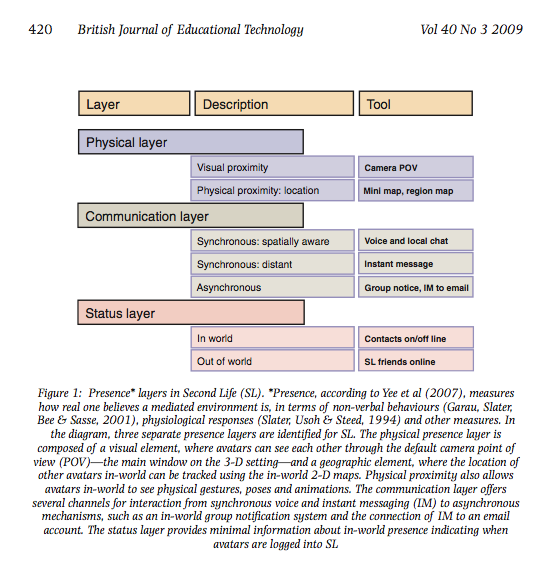

  6. Warburton (2009) paper provides a table with a rich variety of sync and async communications and presence indication methods, as well as listing some of the issues for usability of virtual worlds like Second Life for education and collaboration.
  7. Warbuton, S. (2009). "Second Life in higher education - Assessing the potential for and the barriers to deploying virtual worlds in learning and teaching", British Journal of Educational Technology, 40(3), 414-426.

Austin Tate's picture

DICE I-Room Design and Rationale

The DICE I-Room is lavailable on the VCE region in Second Life and on the OpenVCE regions in the OpenSim-based MOSES grid where a range of simplifications can be made to ease the new user experience.

In Second Life, the DICE I-Room is currently placed at 500m above an unused area of the region (VCE in Second Life) to be clear of all distractions and other objects.

Initial Web-based Arrival, Setup, Resources and Registration

A single web page at a stable URL will provide everything needed in as short a form as possible. This will be more controllable in OpenSim, with custom simple starter avatars (perhaps basic male and female with self selected colored shirts, ethnic skin color and hair).

Virtual Worlds Environment

  1. Fixed sun set at 11am (so no lights are needed and no changing arrival conditions for users are encountered).
  2. Arrival point: will be fixed for the plot so avatar arrive just outside the main meeting area and to the back of the meeting, out of normal visual direction for those already in a meeting.

DICE I-Room Design


  1. I-Room orientated pointing North for obvious orientation on arrival.
  2. Platform simply designed and colored.  Unobtrusive floor texture helps set scale and perspective. Natural textures for tables gives a natural orientation.
  3. Area is walled so avatars cannot walk over edge, but not too high to act as a hard visual barrier, so looks open and airy.
  4. Main space is 24m x 24m essentially square but with open doorway, and no roof.
  5. Text chat range is 20m... so no avatars should be seated more than 20m apart.
  6. An outside arrival area set behind the normal visual field of seated avatars in a meeting.
  7. Table in front of avatars to give a feeling of being round the table together. Tables are solid to give a realistic environment but wide corridors make navigation simple. natural wood texture used on table to improve contrast.
  8. A separately placed sideways on "chair person" seat is available.
  9. Some observer seats are provided at the back of the room.
  10. Seats simple, all areas can be clicked on for sitting. Seats set to allow single click to sit. One simple color for seats (could be different colors for different I-Rooms to allow instant differentiation). Seating is aligned to face screens with default camera angles. Seating is non-solid (phantom) to allow for ease of navigation for inexperienced users.
  11. Clicker per avatar seat for basic interaction, voting and acknowledgement of some action complete, etc. Chairperson has clicker clearer.
  12. Compass orientation signs are attached to the walls of the I-Room for ease of orientation and reference.
  13. Plot is set to have its own voice channel and media URLs.
  14. Arrival point information board.
  15. Screens provided: See below. Frame added on screens to provide 3D depth and to ensure contrast with wall whatever content is displayed.

I-Room Screens
Four screens are available for the I-Room as exemplars of what can be made available.  Each can easily be removed, resized, repositioned or replicated (R4) for example to put more screens on other walls or provide more functionality such as maps and posters. Howvere, it is envisaged that in productive use it is likely that only two screens chosen from this set may be visible on the main display wall.

  1. Screen to show the main (single) media URL for the room, which can be programmatically controlled by room objects and a menu in the screen, including use of previously created bookmarks. This includes video (prerecorded per user view, synchronous viewing media and live streams), web pages, images, etc. A second mode allows for preloaded images to be shown if required. Using the open source FreeView control script as improved by the OpenVCE project. http://openvce.net/resources/downloads/freeview-1.2a-2009-07-23.lsl
  2. OpenVCE project created presentation facility supported by a web upload capability for presentations for individual avatars is available as a possible alternative to (a), or alongside it. This screen also repeats the functionality of (a) if desired. See http://openvce.net/presenter
  3. A static images presentation screen for reloaded images, with simple controls for selection of images. As provided by the OpenVCE project.
  4. An example "Shared Media" screen for a wide range of applications where shared screens are required.  This can be used for shared whiteboards, etc.  Each user sees the view as logged in by their own credentials. The shared media screen presents a menu bar that can be used to change URLs and to allow users to individually change to and from "flat on" viewing, See http://openvce.net/sl-viewer-2-shared-media-demos

Build I-Room for DICE

An OpenSim Inventory Archive (IAR) is available to load a DICE style I-Room into the inventory area for an OpenSim avatar.  It can be loaded to the top level of your inventory ("/") via this OpenSim console command:
